Wednesday, May 15, 2019

Restarting syslog/rsyslog on VCSA 6.5

The syslog service is no more directly exposed on VCSA 6.5: it seems that VMware has removed the log collection feature from this release of the VCSA - possibly to push you to use LogInsight.

The actual syslog of the VCSA is configured so that it WILL receive the logs sent to it by network, and will store them in /storage/log/vmware/: but it will fail to do log rotation so the filesystem will eventually fill-up.

To solve the issue all machines that are sending remote syslog to the VCSA must be set up NOT to do so anymore and the files have to be deleted manually: then, rsyslog must be restarted on the VCSA.

Since it is an internal VCSA service, it will have to be restarted with "systemctl":

  systemctl restart syslog

Tuesday, March 19, 2019

vmdk attributes file for a flat-vmdk made from dd

# esxi-descriptorfile# replace XXX with size of flat.vmdk in bytes divided by 512# replace YYY with XXX devided by 16065 rounded down# replace ZZZ with path to flat.vmdk# when done - cut here and save file######################################### Disk DescriptorFileversion=1encoding="UTF-8"CID=12345678parentCID=12345678createType="vmfs"# Extent descriptionRW XXX VMFS "ZZZ"# The Disk Data Base#DDBddb.adapterType = "lsilogic"ddb.geometry.cylinders = "YYY"ddb.geometry.heads = "255"ddb.geometry.sectors = "63"ddb.virtualHWVersion = "8"


Tuesday, November 27, 2018

Bridge in ESXi

Note to self: also according to this post, there is a kind of bug in ESXi when a linux bridge interface is made with a vNIC than resides in a vSwitch with more than one uplink. The second uplink replays some of the arp broadcast back to the bridge interface in a weird way confusing the arp table: this stops some protocol from traversing the bridge from outside the ESXi inbound.
Workaround: set the aging time to 0. This turns the bridge into a kind of "hub" mode where all the broadcast traffic is replayed to all the promisquous interfaces regardless of the arp table.

In my case, it was stopping dhcp from a phisical dhcp server and later ping replies from VM's in another vSwitch

Friday, February 19, 2016

Today I installed a demo of Horizon View 6.2 using linux Desktops: it works, but it is not yet very straight-forward, it lacks some major features, for example:
- single sign-on
- automated pools, linked clones etc...
I will make more experiments in the next days and see how far I can get, waiting for Horizon 7 ga.

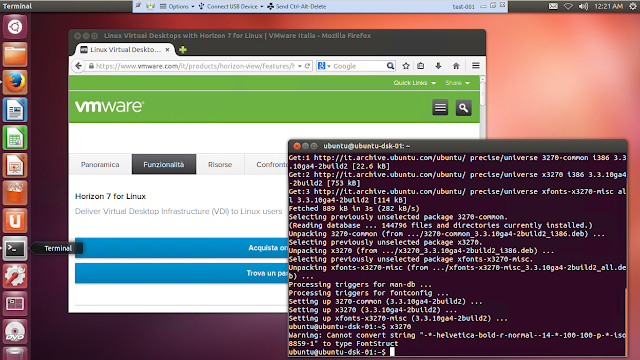

Ubuntu linux accessed throught View Horizon

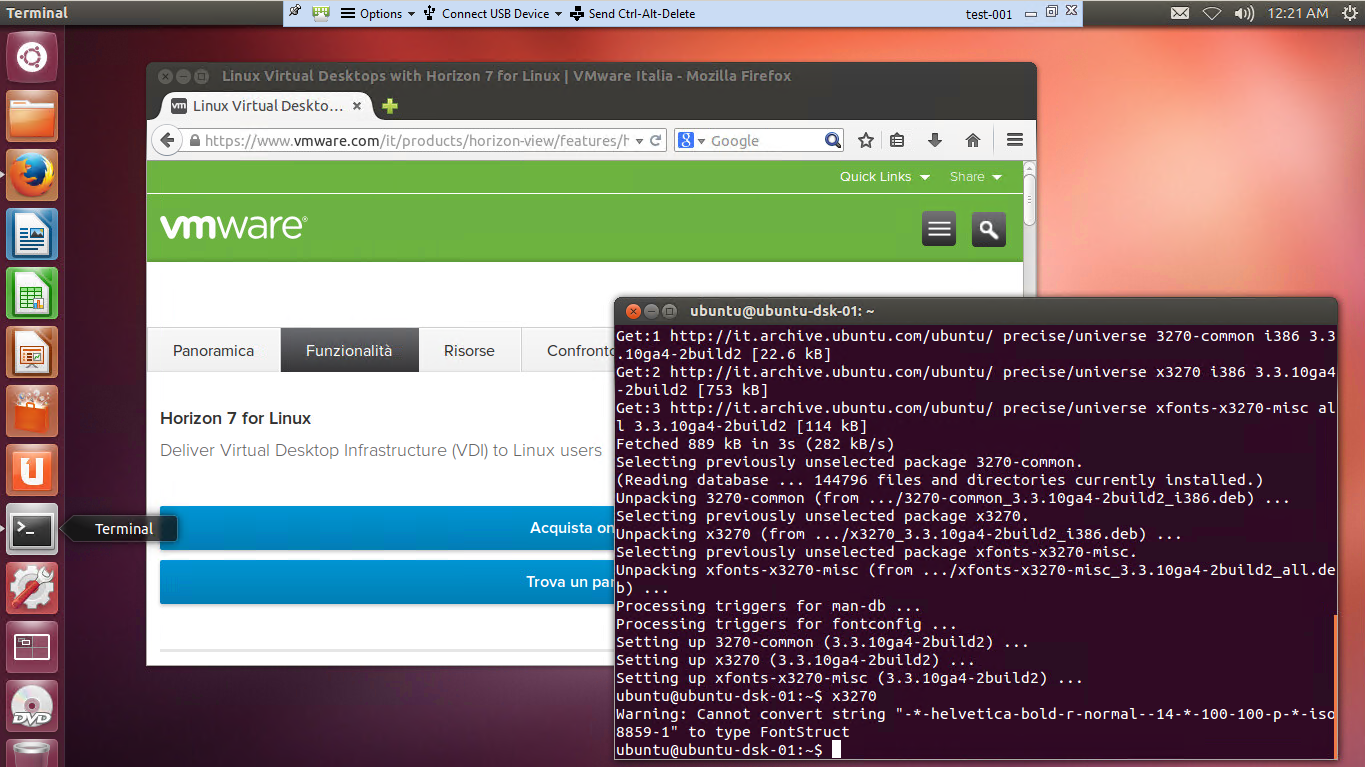

Ubuntu dekstops in Horizon View 6.2

Sunday, January 3, 2016

How to block-dump a device in a compressed but stil mountable format

This is the procedure to produce a block-level disk-dump that is both:

  • compressed
  • mountable/runnable with qemu
The procedure is inspired by this post: it uses SquashFS instead of gzip to achieve compression while retaining mountability: the idea is:
  1. build a SquashFS .img file that *contains* the disk-dump .img file
  2. the SquashFS file is compressed by SquashFS itself but can be easily mounted (albeit only read-only)
  3. after the SquashFS file is mounted RO, qemu-img can be used to create a writable qcow2 file based on the raw .img file
  4. the qcow2 file can then be mounted/read/inspected/run as a VM with for example qemu-kvm or qemu-nbd

Dump Procedure:

  • *TURN OFF* the system, I mean *POWER IT OFF* I mean *DON'T JUST SUSPEND/HYBERNATE*, specially if *Windows*
  • Boot a linux liveCD distro, for example SystemRescue-CD
  • Identify the drive you want to dump, example /dev/sda (you can use fdisk -l or cat /proc/partitions to get some hints)
  • Connect and mount the drive when you want to store the image, for example under /mnt/usb
  • mkdir a new empty directory in /mnt/usb, es
#mkdir diskdump
  • create the SquashFS image: this command makes a SquashFS by compressing the content of the diskdump directory (empty, or you could add some files of your choice before running this command) and adds to it a virtual file generated on the fly by running dd and dumping your drive
#mksquashfs diskdump /mnt/usb/squash.img -p 'sda.img f 444 root root dd if=/dev/sda bs=4M'
  • this will take a LONG time depending on the CPU power and on the speed of the involved drives.
  • For me it took around 12h to copy 500GB from an eSATA SSD drive to an USB-2 SATA-5400RPM drive on a dual core i5: total amount written was about 150GB. The 500GB drive contained a dump of a rather filled 250GB partition and was zero-filled to 500GB: the bottleneck seemed to be the target drive (a rather slow external disk on USB2)

Read Procedure:

  • Mount the disk containing your SquashFS .img file, under for example /mnt/usb
  • Now mount *the SquashFS* under for example /mnt/squash
# mount -o ro -t squashfs /mnt/usb/squash.img /mnt/squash
  • If you ls /mnt/squash you should see the file you created in the previous step, so you should see /mnt/squash/sda.img. The size should match the uncompressed size of the disk you dumped
  • If you want to dump it back or copy the .img file itself by just reading it, you can proceed directly. In teory you could losetup a loop device to the .img and mount it directly: but keep in mind the dump file is on a read-only device (the squashfs) and so will only support a read-only mount. If you want to mount the image and browse it, I advice you create a writeble snapshot of it (see below) since many filesystems (NTFS anybody?) don't like a read-only device.

RW Mount Procedure: (writes will be NOT committed to the dump):

  •  Create a temporary writable .qcow2 snapshot of your .img file
#qemu-img create -f qcow2 -o backing_file=/mnt/squash/sda.img,backing_fmt=raw /tmp/writable.qcow2
  • You can now proceed mounting the qcow with for example qemu-nbd
#modprobe nbd max_part=63
#qemu-nbd -c /dev/ndb0 /tmp/writable.qcow2
#fdisk -l /dev/nbd0
  • You can mount any of the listed partitions with the proper filesystem

Umount Procedure:

  • Just remember to umount things in the reverse order
  • Umount all the partitions of /dev/nbd0 you may have mounted
  • Kill nbd
#qemu-nbd -d /dev/nbd0
#killall qemu-nbd
#sleep 5
#killall -9 qemu-nbd
  • Umount the squashfs (mnt/sqashfs)
  • Umount the disk containing the dump (/mnt/usb)
  • Decide if you want to keep writeble.qcow2 or remove it. All the I/O you did to the mounted img file has been written here, NOT in the dump file that is read-only and has not been touched.
